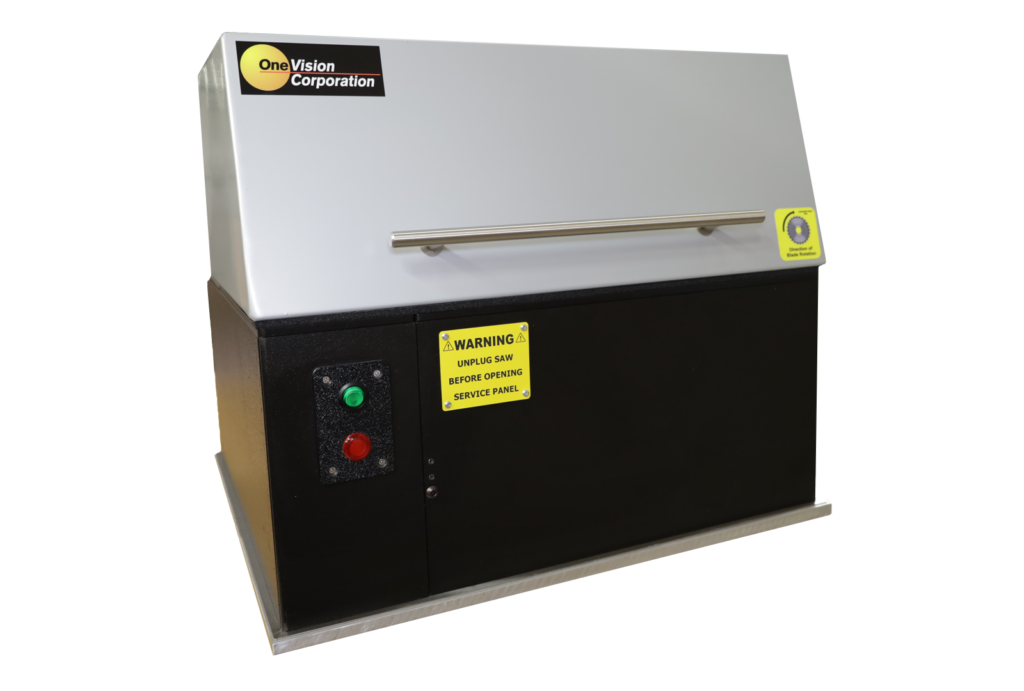

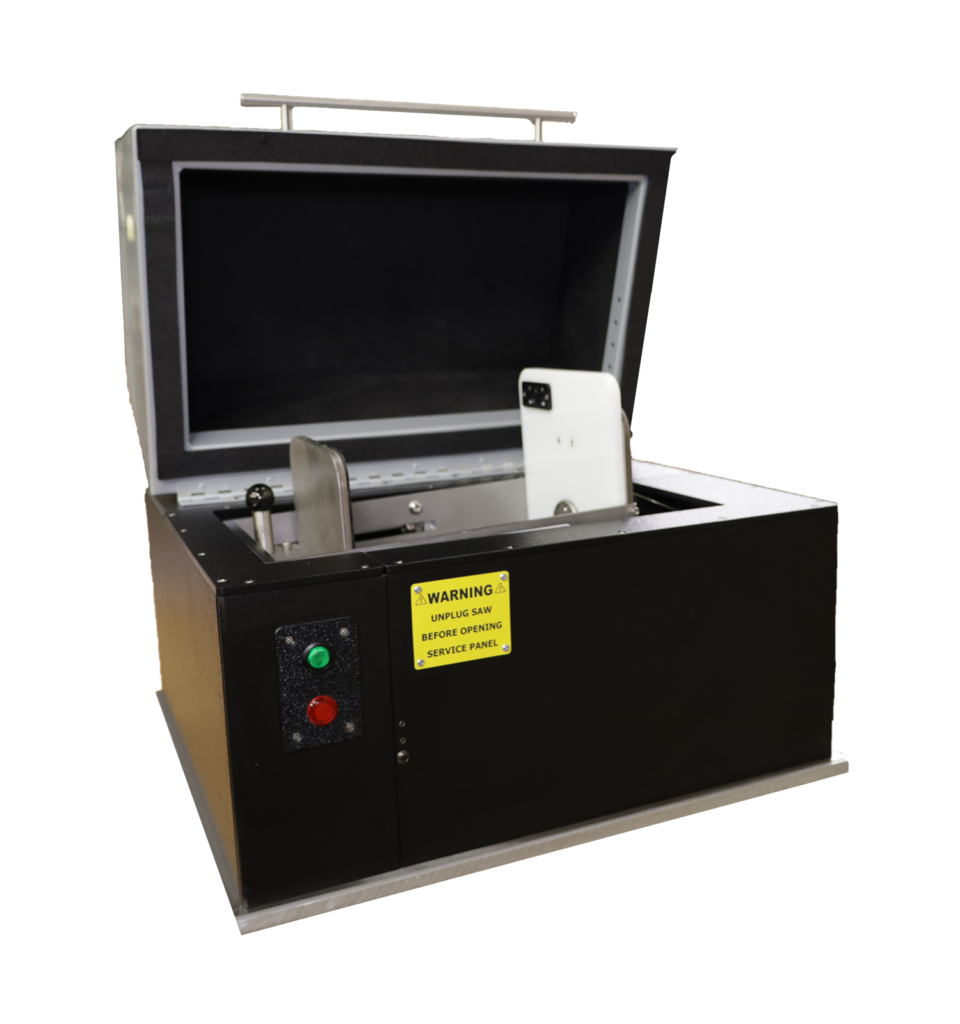

Model 590 Automatic Seam Saw

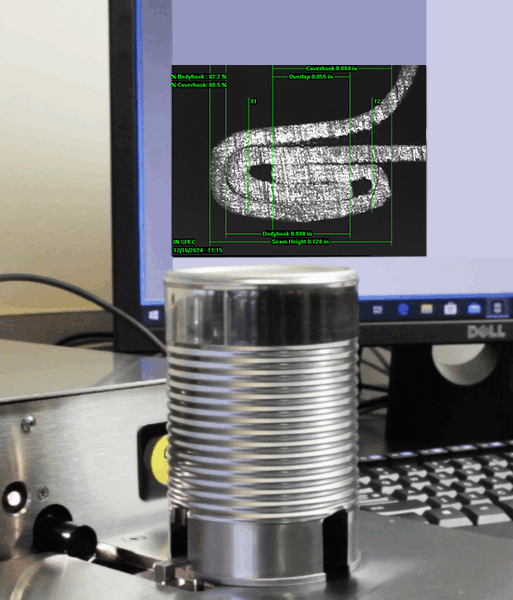

Improved safety and distortion-free cross sections ideal for seam imaging.

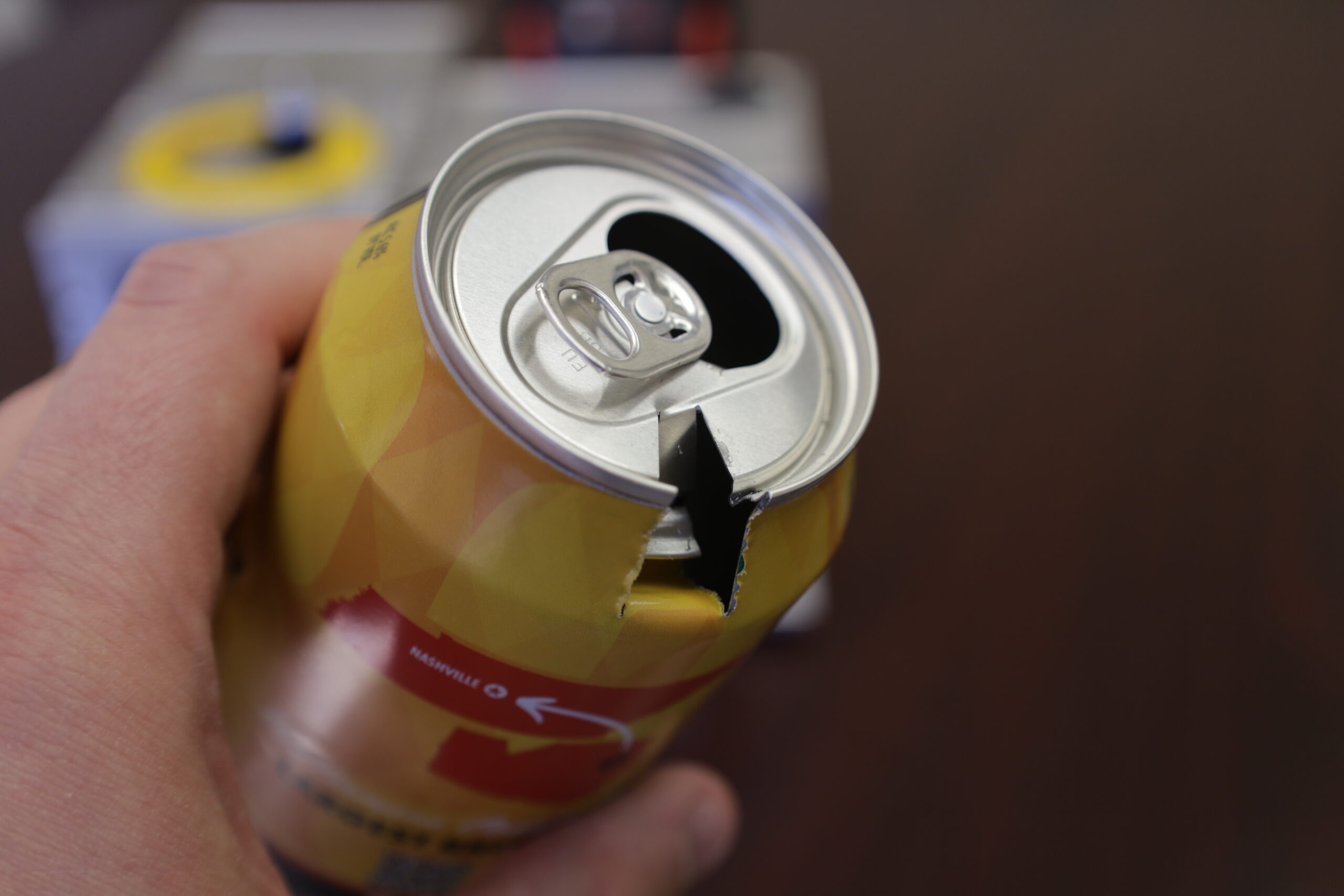

With low noise, fast cycle time, a safely contained cutting system, and universal can holding, the Model 590 Automatic Seam Saw from OneVision is the answer to quick and safe seam inspection notches.

New in 2026, the Model 590 builds on the proven success of our previous model by adding new product features and meaningful product refinements. Including:

  • Universal Can Clamp with automatic can positioning
  • Cabinet Service Door for front facing access to the cutting area
  • Simplified Cuttings Tray for easier cleaning
  • Tilt Box Service Pin for added safety
  • Sliding Can Clamp Assembly that increases maximum can height & component durability
  • Next-Gen Software Architecture with modern hardware/software & offering future upgrade capabilities
  • Indestructible Blade Safety Cover
  • Safety Interlock Monitoring System for improved operator safety
  • Latest mechanical and electrical system components for improved efficiency
DOWNLOAD BROCHURE

Features

• Precision cuts for better images
• Microprocessor-controlled can feed and tab bending
• Microprocessor-controlled blade speed for distortion-free images
• Noise level under 80 dB
• Universal and automatic can clamping
• Fast cycle time
• Safe, contained cutting
• Safety Interlock Monitoring System for added operator safety
• Full-front access door for easy cleaning and blade access
• Measure-ready can slot

Specifications

• Corrosion-resistant stainless steel and high density polyethylene
• Accommodates 200 to 603 steel, beverage and composite cans
• Dimensions: 22.5” W x 19.5” D x 18” H
• Weight: 145 lbs.
• Power requirements: 120 VAC 60 Hz
• Clean compressed air: 80 PSIG at 2 CFM peak
