Portable Beverage System
A compact, affordable system for viewing and measuring critical internal beverage can double seam dimensions.
Now in its second generation, the Portable Beverage System has been redesigned with a new user interface, an improved measurement process, and a larger 7″ touchscreen for a faster, more intuitive inspection experience.
An ideal solution for beverage canners that want to visually inspect double seams but aren’t quite ready for an advanced measurement system. The portable system can also be used for quick visual seam checks at the line.

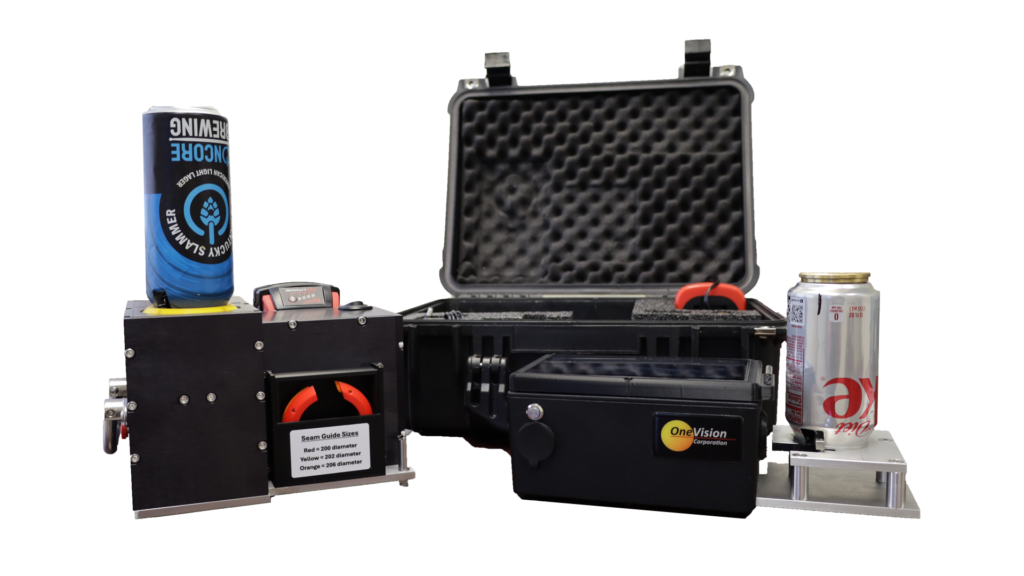

The Portable Beverage System includes:
• Mini Saw
• Three (3) can guides for cutting 200 (red), 202 (yellow), and 206
(orange) cans
• High ouput battery and charger (U.S. orders only)
• Seam cleaning bars
• QuickViewer™
• Loaded with OneVision’s Base or Pro proprietary software
• OneVision-branded 2GB USB drive for exporting images
• Stylus
• Can weight for stabilization when imaging
• Machinist ruler (Base model only)
• Protective Carrying Case
• Full system weighs 25 lbs. in protective carrying case
Available in two models.
Which model is right for your operation? Base Pro
Both models accurately evaluate internal double seam dimensions, including Body Hook, Cover Hook, Overlap, and Seam Height. With the Base model, users manually place measurement lines and use the on-screen ruler to match their physical measurement, allowing the software to calculate the value. With the Pro model, users simply select Measure, and the system automatically places the measurement lines and calculates the values, with the option to fine-tune line placement if needed.

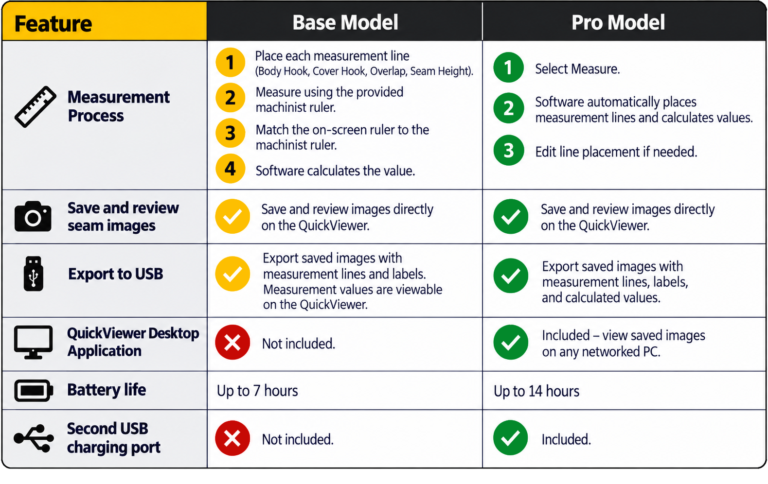

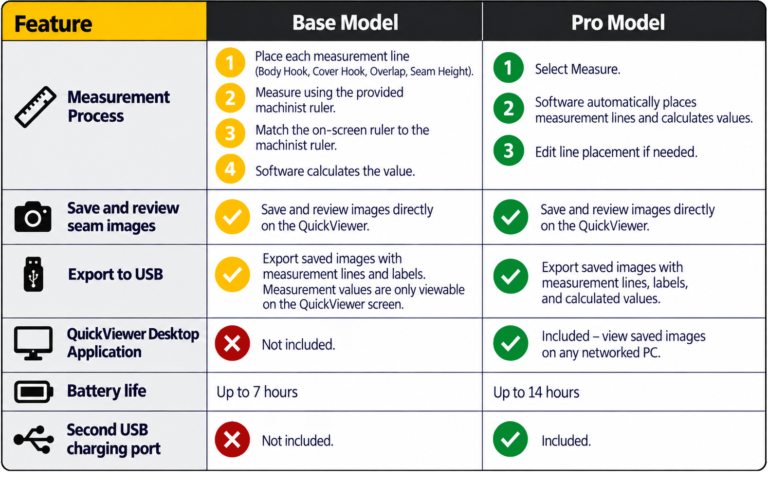

Base and Pro Model Comparison
The Measurement Process
Take a Closer Look
Mini Saw
The OneVision Mini Saw is a simple, portable solution for preparing beverage cans for optical double seam inspection. Designed for ease of use, the saw produces a clean, consistent slot through the double seam for viewing and measurement with the QuickViewer™. The saw uses a single, long-lasting blade with an easy-to-change design.
- Safe, enclosed blade and cutting cycle.
- Includes seam guides for 200, 202, and 206 cans. Additional seam guide sizes up to 206 available upon request.
- Cutting time under 5 seconds per slot
- Blade changed in under 5 minutes
- Blade life: 2-3,000 cuts
- Weighs approximately 14 lbs. with battery
- Dimensions: 9″ x 7″ 6 1/4″
- Includes high output battery and charger (U.S. orders only)
- 35W DC gear motor
- Built-in carrying handle
- Anodized for added durability and resistance to corrosion.
- Includes seam cleaning bars.

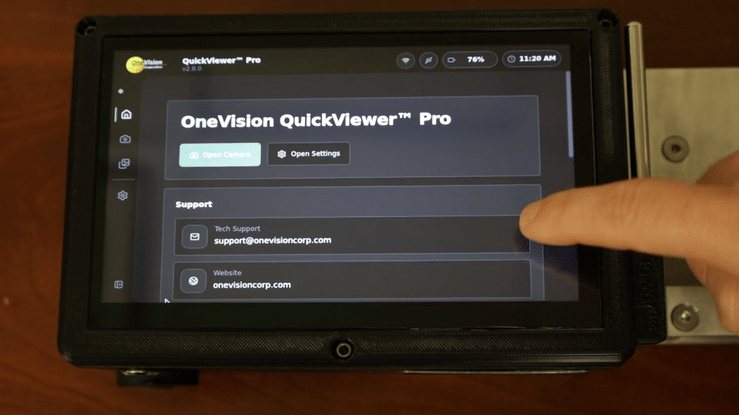

QuickViewer™
The QuickViewer™ combines a high-precision digital microscope and viewing screen in one compact, portable unit. Seam images can be viewed and evaluated directly on the built-in 7-inch touchscreen, eliminating the need for a separate laptop or tablet.
- High-precision digital microscope
- 7″ color touchscreen with light and dark display modes
- Compact design (11 1/4″ x 4 3/4″ x 4″)
- Lightweight (4 1/2 lbs.)
- Battery life of up to 7 hours
- Multi-language interface: English, Spanish, and Japanese

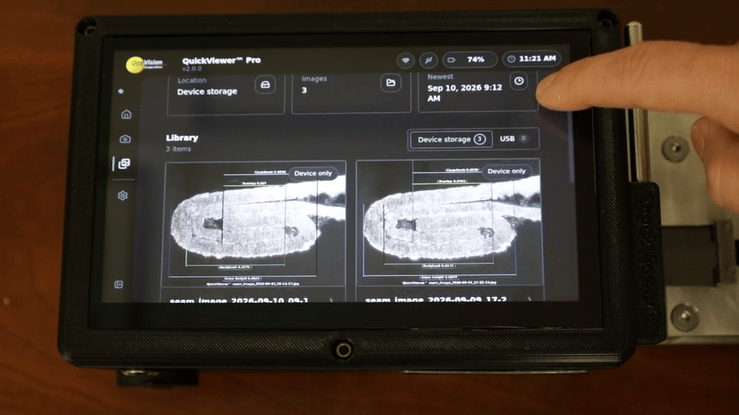

- Save and review seam images directly on the QuickViewer
- Export saved seam images to USB
- Color-coded measurement lines
- Guided measurement line placement
- Measurement values displayed directly on the QuickViewer
- Includes:
• 2 GB USB drive for exporting images
• Machinist ruler
• Can weight to stabilize can during imaging
Upgrading to the Pro model adds:
- Automatic seam measurement and calculation
- QuickViewer Desktop application for viewing saved images on any networked PC
- Extended battery life of up to 14 hours
- Second USB port for charging devices
- Exported seam images include measurement labels, lines, and calculated values
